ODM 4350B Rogers PCB Board printed circuit board prototype 0.508MM For Web Server
-
Vurgulamak
ODM Rogers PCB Board
,bulk Rogers PCB Board
,ODM printed circuit board prototype
-
MalzemeRogers 4350B
-
Kalınlık0.508mm.
-
BaşvuruWeb Sunucusu
-
Bakır Ağırlığıİç 1/2 oz-4 oz; Dış 1 oz-5 oz
-
Termal iletkenlik0,69 ağırlık/mk
-
Hizmet vermekRekabet fiyatı
-
Place of OriginShenzhen,China
-
Marka adıONESEINE
-
SertifikaISO9001,ISO14001
-
Model NumberONE-102
-
Minimum Order Quantity1pcs
-
FiyatUSD0.1-1000
-
Packaging DetailsVacuun bag
-
Delivery Time5-8 working days
-
Payment TermsT/T,Western Union
-
Supply Ability1000000000pcs/mon

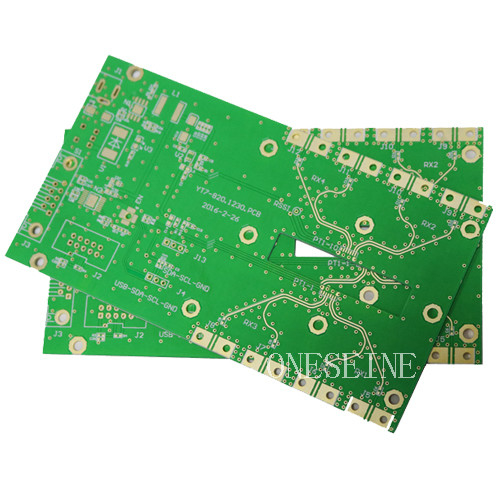

ODM 4350B Rogers PCB Board printed circuit board prototype 0.508MM For Web Server
Ro4350b 4350B Rogers PCB Board Printed Circuit Board Prototype ODM In Bulk
Product Specifications
| Attribute | Value |
|---|---|
| Material | Rogers 4350B |
| Thickness | 0.508MM |
| Application | Web Server |
| Copper Weight | Inner 1/2 oz-4oz; Outer 1oz-5oz |
| Thermal Conductivity | 0.69w/m.k |
| Service | Competitive price |
Product Details
Rogers Ro4350b Price 4350B Material 0.508MM PCB For Web Server
Quick Specifications
| Material | Rogers 4350 | Color | Red solder mask white silkscreen |
| Thickness | 0.8MM | Copper | 1OZ |
| Layer | 2 | Name | Web server PCB |
| Surface finish | ENIG | Size | 9*2CM |
Available Rogers PCB Materials
- Rogers 4350B
- Rogers 4003C
- Rogers 3003
- RT5880
- RT5870
- Rogers High Frequency Laminates
- 3001 Bonding Film (Thermoplastic Chloro-fluorocopolymer)
- RO3000® series High Frequency Laminates (PTFE/Ceramic)
- RO3035® series High Frequency Laminates (PTFE/Ceramic)
- RO3200® series High Frequency Laminates (PTFE/Ceramic)
- RO4000 High Frequency Laminate with TICER Foil
RO4350B™ Laminates Features
RO4350B™ materials are proprietary woven glass reinforced hydrocarbon/ceramics with electrical performance close to PTFE/woven glass and the manufacturability of epoxy/glass.
Providing tight control on dielectric constant and low loss while utilizing the same processing method as standard epoxy/glass, RO4350B is available at a fraction of the cost of conventional microwave laminates. No special through-hole treatments or handling procedures are required as with PTFE based microwave materials.
RO4350B materials are UL 94V-0 rated for active devices and high power RF designs.
Typical Applications
- Cellular Base Station Antennas and Power Amplifiers
- Microwave point to point (P2P) links
- Automotive Radar and Sensors
- RF Identification (RFID) Tags
- LNB's for Direct Broadcast Satellites
Available Rogers Material Series
| Series | Models | Documentation |
|---|---|---|
| RO3000 Series | RO3003/RO3006/RO3010 | DATA SHEET |
| RO4000 Series | RO4003C/RO4350B | DATA SHEET |
| RT / duroid | 5870/5880 | DATA SHEET |
| RT / duroid | 6002 | DATA SHEET |
| ULTRALAM 3000 | 3850 | DATA SHEET |
