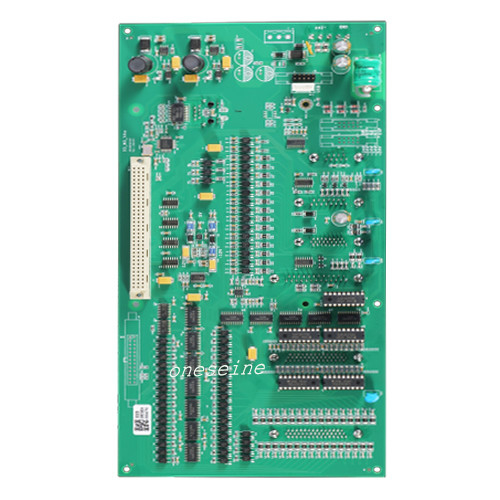

SMT PCB Assembly Service 0.5oz-3oz FR4 with Functional Testing

Providing full-scale solutions for complex circuit boards with professional manufacturing capabilities.

• Base material: FR4 epoxy resin
• Board thickness: 1.6mm
• Surface finish: Immersion gold
• Board size: 7.2*17.3CM
• Copper thickness: 1OZ
• Solder mask and silkscreen: green and white
• Components sourcing: available

• Type of Assembly: SMT, DIP & THT
• Solder Type: Water Soluble Solder Paste, Leaded and Lead-Free
• Components: Passive down to 0201 size; BGA and VFBGA; Leadless Chip Carriers/CSP
• Bare Board Size: Smallest 0.25*0.25 inches to Largest 20*20 inches
• File Formats Accepted: Bill of Materials, Gerber files, Pick-N-Place file
• Service Types: Turn-key, partial turn-key or consignment
• Component Package: Cut Tape, Tube, Reels, Loose Parts
• Turn Time: Same day service to 15 days service
• Testing: Flying Probe Test, X-ray Inspection, AOI Test
• PCBA Process: SMT → Wave Soldering → Assembling → ICT → Function Testing

• SMT, PTH, mixed technology assembly
• SMT capacity: 2,000,000 solder joints per day
• DIP capacity: 300,000 joints per day
• Ultra fine pitch, QFP, BGA, μBGA, CBGA assembly
• Advanced SMT assembly technology
• Automated insertion of PTH components
• Cleanable, aqueous and lead-free processing
• RF manufacturing expertise
• Press fit back planes & mid planes
• Device programming services
• Automated conformal coating

• Universal Tester
• Flying Probe Open/Short Tester
• High power Microscope
• Solderability Testing Kit
• Peel Strength tester
• High Volt Open & Short tester
• Cross Section Molding Kit With Polisher

• Professional Surface-mounting and Through-hole soldering Technology
• Various component sizes (1206, 0805, 0603, 0402, 0201) SMT technology
• ICT (In Circuit Test) and FCT (Functional Circuit Test) technology
• PCB Assembly with UL, CE, FCC, Rohs Approval
• Nitrogen gas reflow soldering technology for SMT
• High Standard SMT & Solder Assembly Line
• High density interconnected board placement technology capacity

• Gerber file and BOM list (Gerber, PCB, Eagle or CAD files accepted)
• Clear photos of PCBA or PCBA sample for reference
• Test method specifications for PCBA to ensure 100% quality

• Printed Circuit Board Assembly (PCBA)
• Through Hole assembly
• Surface Mount (SMT) assembly
• PCB Handling up to 400mm x 500mm
• RoHS Compliance Production
• Non RoHS Production (where permitted)
• Automated Optical Inspection (AOI)

• Passive components down to 0201 size
• BGA and VFBGA assembly
• Leadless Chip Carriers/CSP
• Fine Pitch to 0.8mils
• BGA Repair and Reball services
• Part Removal and Replacement
