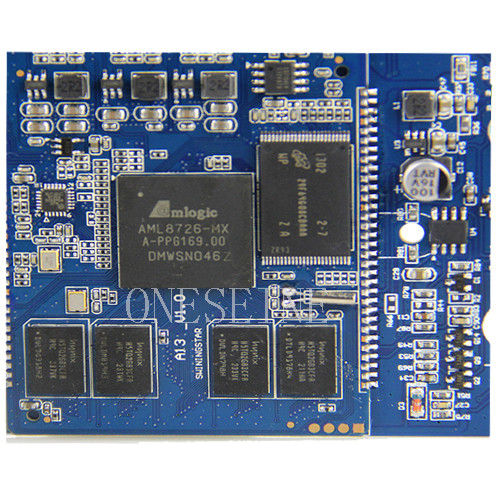

Low-Volume SMT PCB Assembly with X-ray and AOI Testing

  • Low-Volume SMT PCB Assembly with X-ray and AOI Testing
Fiyat Al Şimdi başvurun
Electropolishing Low Volume SMT PCB Board Assembly Turnkey Custom
Product Specifications
Attribute Value
Product Attributes Low-Volume PCB Assembly, SMT stencils, 2 layer pcb assembly, SMT
PCBA Test X-ray, AOI Test, Functional test
Solder Mask Orange, Green/Black/White/Red/Blue etc.
Silkscreen Color White, Black, Yellow
Testing Service Function Test, 100% Test
Drill Deviation ±0.05mm
Component Sourcing Yes
Standards IPC-A-610 E Class II-III
Low-Volume Turnkey PCB Assembly with SMT Solder Paste Stencils

Our specialized SMT stencils serve as precise molds designed for accurate solder paste deposition onto PCBs, ensuring proper component placement and electrical connections.

SMT Stencil Types
  • Laser Stencils: Most common type with precise aperture control
  • Electro-polishing Templates: For enhanced surface finish
  • Electroforming Templates: Ideal for fine pitch applications
  • Step Stencils: Accommodates components with varying paste requirements
  • Bonding Templates: For specialized applications
  • Nickel-plated Templates: Increased durability and longevity
Standard Stencil Configurations
  • Frameless SMT Stencils: For flexible printing solutions
  • Framed SMT Stencils: Foils permanently mounted in aluminum frames
  • Multi-level/Step Stencils: Solves co-planarity issues
  • Electroformed Stencils: Superior paste release for fine pitch (20-12 mil)
Custom SMT Stencil Specifications
  • Dimensions: 37×47cm to 40×140cm (customizable)
  • Thickness: 0.08mm to 0.18mm (customizable)
  • Minimum Aperture: 0.025mm
  • Frame Material: Aluminum alloy
  • Mesh Material: Stainless steel 204
  • Adhesive: AB glue
  • Standard Lead Time: 3-10 days after confirmation
  • Sample Lead Time: 3 working days
  • Shipping Options: Express, Air, or Sea
PCB Assembly Process Overview
  1. Component Procurement: Sourcing based on specifications and availability
  2. PCB Fabrication: Manufacturing bare boards with precise copper traces
  3. Component Placement: Automated SMD placement with pick-and-place machines
  4. Soldering: Reflow for SMD or wave soldering for through-hole components
  5. Inspection & Testing: AOI, X-ray, and functional verification
  6. Final Assembly: Integration of connectors, enclosures, and mechanical components
Advanced Assembly Technologies
  • Surface Mount Technology (SMT): High-density component placement
  • Through-Hole Technology (THT): For components requiring mechanical strength
  • Mixed Technology: Combining SMT and THT for optimal design
  • RoHS Compliance: Lead-free processes meeting environmental standards
Low-Volume SMT PCB Assembly with X-ray and AOI Testing 0
