Turnkey PCB Board Assembly
,Prototyping PCB Board Assembly
,Turnkey circuit board prototyping service
-
PCB TürüÇok katmanlı
-
MalzemeFr4 epoksi reçinesi
-
Yüzey kaplamasıDalga
-
RenkYeşil, beyaz
-
PCB AnahatKare, daire, düzensiz (jig ile)
-
İşlemSMD+DIP
-
ROHSCanec1308721101
-
PaketiVakum cilt çift taraflı
-
Place of OriginShenzhen,China
-
Marka adıONESEINE
-
SertifikaISO9001,ISO14001
-
Model NumberONE-102
-
Minimum Order Quantity1pcs
-
FiyatUSD0.1-1000
-
Packaging DetailsVacuun bag
-
Delivery Time5-8 working days
-
Payment TermsT/T,Western Union
-
Supply Ability1000000000pcs/mon

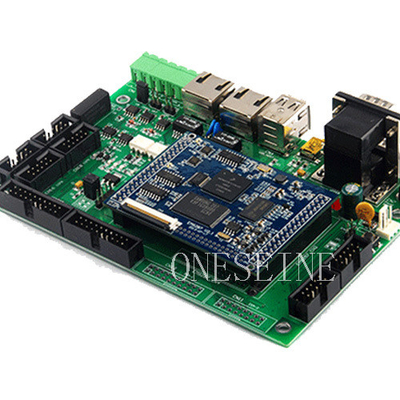

Turnkey PCB Assembly Service Multilayer FR4 Immersion Gold
One Stop Turnkey PCB Board Assembly Printed Circuit Board Prototyping Service
Product Specifications
| Attribute | Value |
|---|---|
| PCB Type | Multilayer |
| Material | FR4 epoxy resin |
| Surface Finish | Immersion gold |
| Color | Green, White |
| PCB Outline | Square, circle, irregular (with jigs) |
| Process | SMD+DIP |
| Rohs | CANEC1308721101 |
| Package | Vacuum Skin Double-Sided |
One-Stop Turnkey PCB Manufacturer SMT Fast Turn Printed Circuit Board Assembly
General PCBA Information
Base material: FR4 epoxy resin
Board thickness: 1.6mm
Surface finish: Immersion gold
Board size: 7.2*17.3CM
Copper thickness: 1OZ
Solder mask and silkscreen: green and white
Components sourcing: yes
Production Capabilities
- Prototype & Low Volume PCB Assembly & Mass production (without MOQ)
- Type of Assembly: SMT, DIP & THT
- Solder Type: Water Soluble Solder Paste, Leaded and Lead-Free
- Components: Passive Down to 0201 size; BGA and VFBGA; Leadless Chip Carriers/CSP
- Bare Board Size: Smallest: 0.25*0.25 inches; Largest: 20*20 inches
- File Format: Bill of Materials; Gerber files; Pick-N-Place file
- Types of Service: Turn-key, partial turn-key or consignment
- Component Package: Cut Tape, Tube, Reels, Loose Parts
- Turn Time: Same day service to 15 days service
- Testing: Flying Probe Test; X-ray Inspection; AOI Test
- PCBA Process: SMT--Wave Soldering--Assembling--ICT--Function Testing
Our PCBA Capability
- SMT, PTH, mixed technology
- SMT: 2,000,000 solder joints per day
- DIP: 300,000 joints per day
- Ultra fine pitch, QFP, BGA, μBGA, CBGA
- Advanced SMT assembly
- Automated insertion of PTH (axial, radial, dip)
- Cleanable, aqueous and lead-free processing
- RF manufacturing expertise
- Peripheral process capabilities
- Press fit back planes & mid planes
- Device programming
- Automated conformal coating
Testing Equipment
- Universal Tester
- Flying Probe Open/Short Tester
- High power Microscope
- Solder ability Testing Kit
- Peel Strength tester
- High Volt Open & Short tester
- Cross Section Molding Kit With Polisher
Technical Requirements for PCB Assembly
- Professional Surface-mounting and Through-hole soldering Technology
- Various sizes like 1206,0805,0603,0402,0201 components SMT technology
- ICT(In Circuit Test), FCT(Functional Circuit Test) technology
- PCB Assembly With UL, CE, FCC, Rohs Approval
- Nitrogen gas reflow soldering technology for SMT
- High Standard SMT & Solder Assembly Line
- High density interconnected board placement technology capacity
Break the RF Prototype Bottleneck: Cheap, Fast PCBA in Days, Not Weeks
Your innovation shouldn't stall waiting for slow, overpriced RF boards. When you need high-frequency prototypes fast and affordable, traditional suppliers force impossible choices: sacrifice performance, blow your budget, or delay your project. Stop compromising.
Introducing the Industry's Most Cost-Effective Quick-Turn RF PCBA Service
Engineered for speed without sacrificing RF integrity, we deliver functional high-frequency prototypes faster and cheaper than you believed possible. Get your designs tested this week.
Why Engineers Trust Us for Critical RF Prototypes
Radically Affordable RF Materials & Fabrication: Prototype Pricing on Rogers/Taconic: RO4350B, RO4003C, ISOLA - get premium laminates without premium markups.
True Impedance Control: Laser precision on trace geometry & stackup ensures GHz+ signal integrity.
Zero NRE Costs: No hidden fees for impedance tuning or RF-specific DFM checks.
Unmatched Speed - From Files to Functional Board
24-Hour RF PCB Fab: Complex multilayer boards with tight tolerances, ready in 1 business day.
72-Hour PCBA Turnkey: Sourcing, SMT/THT assembly, testing - done in 3 days. Urgent? Ask about expedited.
Dedicated Express Prototype Lines: Your job jumps the queue. Guaranteed.
True RF-Capable One-Stop Assembly
Expert RF Component Sourcing: We find connectors, MMICs, passives - even obsolete or niche RF parts - fast and budget-friendly.
Micro-Accuracy Assembly: IPC Class 3 standards, 01005 handling, μBGA soldering. AOI/X-Ray validated.
Basic RF Verification: Optional continuity & RF performance spot-checks pre-shipment.
Who Leverages Our Speed & Savings?
- 5G/IoT Teams: Validate mmWave, Wi-Fi 6E/7, cellular modules instantly.
- Defense/Aerospace Startups: Accelerate radar, satcom, EW prototypes on lean budgets.
- Research Labs: Iterate amplifier, filter, and antenna designs rapidly.
- Medical Device Innovators: Test wireless implants and diagnostic sensors faster.
