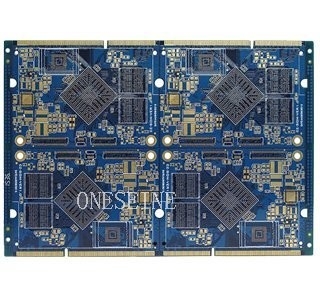

6 Layer FR4 Multilayer PCB with Via in Pad and HASL-F Finish

6 Layer FR4 Multilayer PCB with Via in Pad and HASL-F Finish

Ürünler - FR4 basılı devre kartı
  • Vurgulamak

    Roger 4003c multimeter circuit board

    ,

    10mil multimeter circuit board

    ,

    Roger 4003c pcb esp32

  • Layers
    6
  • Core Material
    Fr4
  • Core Count
    3
  • Layer Type
    Multilayer
  • Special Features
    Via in Pad,Vias Filled
  • Keyword
    PCB Maker
  • Slik Screen Color
    white black blue green red
  • Surface Technics
    HASL-F
  • Place of Origin
    Shenzhen,China
  • Marka adı
    ONESEINE
  • Sertifika
    ISO9001,ISO14001
  • Model Number
    ONE-102
  • Minimum Order Quantity
    1pcs
  • Fiyat
    USD0.1-1000
  • Packaging Details
    Vacuun bag
  • Delivery Time
    5-8 working days
  • Payment Terms
    T/T, Western Union
  • Supply Ability
    1000000000pcs/mon

6 Layer FR4 Multilayer PCB with Via in Pad and HASL-F Finish

Fiyat Al Şimdi başvurun
FR4 Roger 4003c Multimeter Circuit Board PCB ESP32 4 Layer 10mil
Product Specifications
Attribute Value
Layers 6
Core Material Fr4
Core Count 3
Layer Type Multilayer
Special Features Via in Pad, Vias Filled
Slik Screen Color white black blue green red
Surface Technics HASL-F
PCB Parameters
  • Material: FR4 (UL RECOGNIZED COMPONENT ZPMV2, 94V-1 MINIMUM)
  • Board size: 80*60mm
  • Brand: ONESEINE
  • Surface finish: Immersion gold (ENIG)
  • Fabrication standard: IPC-A-60
  • Solder mask silk screen: White, non-conductive epoxy ink
Stack Up Details
  • Solder mask (2mils)
  • Top (1.85mils)
  • Roger 4003c core (10mil)
  • L2_GND (1.26mils)
  • Fr4 core (47.244mils)
  • L3_PWR (1.26MILS)
  • Roger 4003c core (10mil)
  • Bottom (1.85mils)
  • Solder mask (2mils)
FR4 PCB Applications

FR-4 is a versatile material widely used in printed circuit boards (PCBs), featuring copper foil laminated to one or both sides of a glass epoxy panel. These copper clad laminates are essential components in various electronic applications.

Key Thermal Stability Features
  • Glass Transition Temperature (Tg): 130-180°C range
  • Coefficient of Thermal Expansion (CTE): 12-18 ppm/°C
  • Compatible with standard soldering and reflow processes
  • Good dimensional stability across temperature variations
  • Flame retardant properties for enhanced safety

FR4 PCBs offer excellent mechanical strength, moisture resistance, and chemical stability, making them ideal for consumer electronics, telecommunications, automotive systems, and industrial equipment.
