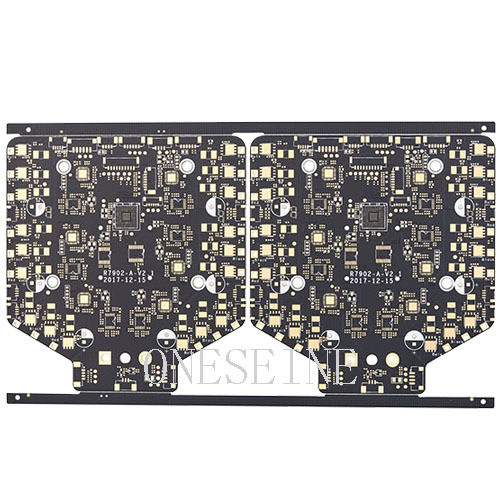

6 Layer Black Solder Mask FR4 PCB Board for UAV Drones

6 Layer Black Solder Mask FR4 PCB Board for UAV Drones

Ürünler - FR4 basılı devre kartı
  • Vurgulamak

    Solder Mask fr4 double sided pcb

    ,

    UAV fr4 double sided pcb

    ,

    Drone pcb esp32

  • Features
    Remote control,Diagram,Mini drone circuit board,Drone motor
  • Color
    Black
  • Solder mask
    Yes
  • Number of layers
    6
  • Material
    FR4
  • Product type
    Drone PCB
  • Board Thickness
    Single/Double:0.008±0.004”
  • Lead Time
    5-10 Working Days
  • Place of Origin
    Shenzhen,China
  • Marka adı
    ONESEINE
  • Sertifika
    ISO9001,ISO14001
  • Model Number
    ONE-102
  • Minimum Order Quantity
    1pcs
  • Fiyat
    USD0.1-1000
  • Packaging Details
    Vacuun bag
  • Delivery Time
    5-8 working days
  • Payment Terms
    T/T, Western Union
  • Supply Ability
    1000000000pcs/mon

6 Layer Black Solder Mask FR4 PCB Board for UAV Drones

Fiyat Al Şimdi başvurun
Black Solder Mask ESP32 FR4 Double Sided PCB Board for UAV Drone
Product Specifications
Attribute Value
Color Black
Solder mask Yes
Number of layers 6
Material FR4
Product type Drone PCB
Features Remote control, Diagram, Mini drone circuit board, Drone motor
Board Thickness Single/Double: 0.008±0.004"
Lead Time 5-10 Working Days
FR4 PCB Parameters
High precision prototype vs PCB bulk production specifications:
Parameter Prototype Bulk Production
Max Layers 1-28 layers 1-14 layers
MIN Line width (mil) 3mil 4mil
MIN Line space (mil) 3mil 4mil
Min via (mechanical drilling) Board thickness≤1.2mm: 0.15mm
Board thickness≤2.5mm: 0.2mm
Board thickness＞2.5mm: Aspect Ration≤13:1		 Board thickness≤1.2mm: 0.2mm
Board thickness≤2.5mm: 0.3mm
Board thickness＞2.5mm: Aspect Ration≤13:1
Board thickness MAX: 8mm
MIN: 2 layers:0.2mm; 4 layers:0.35mm; 6 layers:0.55mm; 8 layers:0.7mm; 10 layers:0.9mm		 MAX: 7mm
MIN: 2 layers:0.2mm; 4 layers:0.4mm; 6 layers:0.6mm; 8 layers:0.8mm
MAX Board size 610*1200mm
Max copper thickness 0.5-6oz
Why Choose Our UAV PCBs
  • 11+ years experience manufacturing UAV PCBs with custom design files
  • Professional flight electronic control circuit boards for FPV UAVs
  • Fast PCB prototyping with production+delivery in as little as 6 days
  • 24-hour quick sample service available
  • No minimum quantity - single prototypes accepted
  • One-time tooling charge for repeat orders
  • Detailed quotations provided within 1 hour
  • Cost-effective solutions to maximize customer benefits
FR4 Material Properties
Our standard FR-4 material features:
  • High Glass Transition Temperature (Tg) (150Tg or 170Tg)
  • High Decomposition Temperature (Td) (> 345º C)
  • Low Coefficient of Thermal Expansion (CTE) (2.5%-3.8%)
  • Dielectric Constant (@1 GHz): 4.25-4.55
  • Dissipation Factor (@ 1 GHz): 0.016
  • UL rated (94V-0, CTI = 3 minimum)
  • Compatible with standard and lead-free assembly
Thermal Stability of FR4 PCBs
FR4 PCBs demonstrate excellent thermal stability with:
  • Glass Transition Temperature (Tg) of 130-180°C
  • Low Coefficient of Thermal Expansion (CTE) of 12-18 ppm/°C
  • Compatibility with standard soldering and reflow processes
  • Good dimensional stability across temperature ranges
  • Flame retardant properties for enhanced safety
FR4 PCB Applications
FR-4 is widely used in:
  • Printed circuit boards (PCBs) with copper clad laminates
  • Relays, switches, and standoffs
  • Busbars and washers
  • Arc shields and transformers
  • Screw terminal strips
