1.6mm Single Sided Circuit Board
,Rogers 4350 Single Sided Circuit Board
,Rogers 4350 pcb manufacturing service
-
MalzemeRogers, FR4
-
Katmanlar4L
-
TipÇok katmanlı
-
Ürün AçıklamasıElektronik PCB Isola PCB Rogers RO4350B Alüminyum PCB Üretici PCB 4 Katman UL PCB Rogers RO4350 BASK
-
Çalışma sıcaklığı-55 ℃ ila 125 ℃
-
Son folyo1 oz
-
Tahta THK1.6 mm
-
KaliteIPC (Sınıf II veya III）
-
Test% 100 elektrik testi öncesi sevkiyat
-
Cu thk1 oz
-
Panel boyutu1*5
-
Place of OriginShenzhen,China
-
Marka adıONESEINE
-
SertifikaISO9001,ISO14001
-
Model NumberONE-102
-
Minimum Order Quantity1pcs
-
FiyatUSD0.1-1000
-
Packaging DetailsVacuun bag
-
Delivery Time5-8 working days
-
Payment TermsT/T,Western Union
-
Supply Ability1000000000pcs/mon

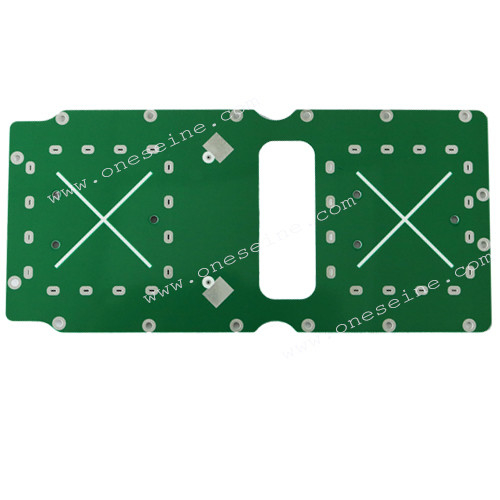

1.6mm Rogers 4350B Single Sided PCB with FR4 Hybrid RF Circuit
1.6mm Rogers 4350 Single Sided Circuit Board Manufacturing Service
Product Specifications
| Attribute | Value |
|---|---|
| Material | Rogers, FR4 |
| Layers | 4L |
| Type | Multilayer |
| Operating Temperature | -55℃ to 125℃ |
| Final Foil | 1 Oz |
| Board Thickness | 1.6mm |
| Quality | IPC (Class II or III) |
| Test | 100% Electrical Test prior shipment |
| Cu Thickness | 1OZ |
| Panel Size | 1*5 |
Rogers 4350 FR4 High Frequency PCB Printed Circuit Manufacturing
Product Details
Product name: Rogers RO4350+FR4 mixed voltage high-frequency printed circuit manufacturing
Plate: Rogers Rogers4350+FR-4
Dielectric constant: 3.48
Dielectric loss: 0.0013
Number of layers: 4
Plate thickness: 1.6mm
Copper thickness: 1OZ
Aperture: 0.25mm
Medium thickness: 0.508mm
Surface technology: ENIG
Plate: Rogers Rogers4350+FR-4
Dielectric constant: 3.48
Dielectric loss: 0.0013
Number of layers: 4
Plate thickness: 1.6mm
Copper thickness: 1OZ
Aperture: 0.25mm
Medium thickness: 0.508mm
Surface technology: ENIG
Sheet Introduction
The high-frequency Rogers RO4350 PCB material is based on ceramic filled PTFE laminates, which can be used in RF and microwave applications up to 40 GHz. The dielectric constant of the laminate is 3 (8-40 GHz), which provides excellent electroplated through-hole reliability even in harsh thermal environments.
Key Characteristics
- A brand new electrolytic copper foil material with extremely low roughness (VLP ED)
- Combines extremely low roughness electrolytic copper foil material with uniform structure, reducing changes in dielectric constant
- Utilizes advanced special fillers for enhanced performance
Application Fields
- Global positioning satellite antenna
- Cellular telecommunications system
- Power amplifier and antenna
- Patch antennas for wireless communication
- Broadcasting satellite
- Power supply backplane
- Automotive radar applications
Why Engineers Choose Our 1.6mm Rogers 4350B PCBs
- Hybrid Value: Rogers 4350B core + FR4 processing reduces costs by 30-40% vs. multilayer RF boards
- Military-Grade Durability: 1oz copper, 1.6mm thickness & 260°C+ lead-free soldering tolerance
- Rapid Turnkey Solutions: Prototypes in 5 days | Full production in 2 weeks
- High-Frequency Optimized: Ideal for 5G antennas, radar systems, and aerospace sensors
- Trusted Compliance: ISO-certified | ENIG/OSP/Immersion Tin finishes | RoHS compliant
Target Applications
◼ 5G NR Base Stations ◼ Automotive Radar ◼ Satellite Comms ◼ Military RF ◼ IoT Gateways
