Quick Turn Single Sided Circuit Board
,Rogers Single Sided Circuit Board
,Quick Turn aluminum core pcb
-
Katman sayısı1 kat
-
Min. Lehim maske köprüsü0.08mm
-
Lehim maskesisarı, yeşil
-
Silk ekranlı renkBeyaz
-
AlevlendirmeUL-94V-0
-
CU kalınlığı1/0oz
-
Place of OriginShenzhen,China
-
Marka adıONESEINE
-
SertifikaISO9001,ISO14001
-
Model NumberONE-102
-
Minimum Order Quantity1pcs
-
FiyatUSD0.1-1000
-
Packaging DetailsVacuun bag
-
Delivery Time5-8 working days
-
Payment TermsT/T, Western Union
-
Supply Ability1000000000pcs/mon

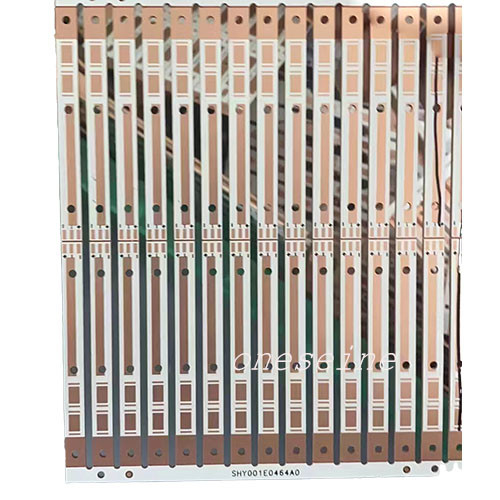

Single Sided Rogers PCB 1 Layer High Frequency Circuit Board
Quick Turn Single Sided Circuit Board High Frequency Rogers Aluminum Core PCB
Product Specifications
| Attribute | Value |
|---|---|
| Layer Count | 1 Layer |
| Min. Solder Mask Bridge | 0.08mm |
| Solder Mask | yellow, green |
| Silkscreen Color | White |
| Flammability | UL-94V-0 |
| Cu Thickness | 1/0OZ |
Product Overview
Quick Turn 1 Layer Single Sided High Frequency Rogers PCB
| Material | Rogers4350 |
| Name | 1L rogers pcb |
| Thickness | 0.508CM |
| Layer | 1 |
| Surface | Immersion gold |
| Key words | high frequency pcb |
| Copper | 1OZ |
| Brand | ONESEINE |
Single Sided Printed Circuit Board Production
Printed circuit boards (PCBs) serve as the foundation for most electronics, providing both physical support and electrical connections for surface-mounted components. Typically made from fiberglass or composite epoxy materials, PCBs range from simple single-layer designs to complex multi-layer configurations with up to twelve layers.
Applications
- Medical Devices: High-density PCBs enable compact designs for pacemakers, X-ray equipment, and CAT scan machines.
- Industrial Machinery: Thick copper PCBs handle high-current applications in motor controllers and battery chargers.
- LED Lighting: Aluminum-backed PCBs provide efficient heat dissipation for high-lumen LED solutions.
- Automotive/Aerospace: Flexible PCBs withstand vibration in instrument panels and tight spaces.
Single Sided PCB Concept
Single-sided PCBs feature copper traces and components on only one side, making them cost-effective solutions for simpler circuits. While easier to design and manufacture than multi-layer boards, they have limitations in circuit density and complexity. These boards are ideal for applications where space isn't constrained and circuit requirements are relatively basic.
Common Consumer Applications
- Television remote controls
- Handheld calculators
- Battery-operated toys
- Basic audio devices
- Simple electronic gadgets
