Mcigicm one sided pcb
,Copper Clad one sided pcb
,Laminated copper clad pcb board
-
Katman sayısı1 kat
-
Min. Lehim maske köprüsü0.08mm
-
PCB AdıTek taraflı ince baskılı devre kartı
-
Maks. Panel boyutu600mm x 600mm
-
Kalınlık1.6 mm
-
Çözgü ve bükülme% 0.075
-
CU kalınlığıH/0oz
-
StandartIPC-A-610G
-
Place of OriginShenzhen,China
-
Marka adıONESEINE
-
SertifikaISO9001,ISO14001
-
Model NumberONE-102
-
Minimum Order Quantity1pcs
-
FiyatUSD0.1-1000
-
Packaging DetailsVacuun bag
-
Delivery Time5-8 working days
-
Payment TermsT/T, Western Union
-
Supply Ability1000000000pcs/mon

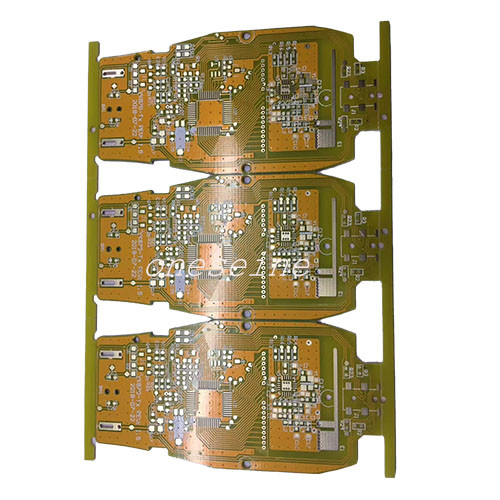

FR4 Single Sided PCB Board 1.6mm Thickness 1 Layer
Laminated Copper Clad One Sided PCB Board Soldering Mcigicm FR4
Product Specifications
| Attribute | Value |
|---|---|
| Layer Count | 1 Layer |
| Min. Solder Mask Bridge | 0.08mm |
| PCB Name | Single sided Thin Printed Circuit Board |
| Max. Panel Size | 600mm x 600mm |
| Thickness | 1.6mm |
| Warp And Twist | 0.075% |
| Cu Thickness | H/0OZ |
| Standard | IPC-A-610G |
Quick Details
| Material | FR4 1.6MM |
| Name | 1L copper clad |
| Thickness | 1.6 |
| Layer | 1 |
| Surface | HASL |
| Key words | HF pcb |
| Copper | 1OZ |
| PCB Size | 8*3CM |
Single Sided PCB Concept
A single-sided PCB (Printed Circuit Board) is a type of circuit board that has copper traces and components mounted on only one side of the board. The other side of the board is typically plain and does not contain any copper traces or components.
Single-sided PCBs are commonly used for simpler electronic circuits with fewer components. They are relatively easier to design and manufacture compared to double-sided or multi-layer PCBs, which makes them more cost-effective for certain applications.
Applications
- Medical devices: Used in everything from pacemakers to X-ray equipment
- Industrial machinery: Motor controllers, high-current battery chargers
- Lighting: LED-based lighting solutions
- Automotive and aerospace: High-vibration environments
Common Consumer Electronics Using Single-Sided PCBs
- Television remote controls
- Calculators
- Battery-operated toys
- Portable radios and basic audio devices
- Digital clocks and kitchen timers
