1.6mm single layer pcb board
,Epoxy single layer pcb board
,Epoxy metal core pcb
-
Katman sayısıtek katman
-
Renkkehanet
-
Değerlendirilmiş Akım15a
-
Kurşun zamanı5-7 iş günü
-
Yüzey kaplamasıHasl
-
Kalınlık1.6 mm
-
StandartIPC Standardı
-
Tahta boyutu90mm x 30mm
-
Bakır ağırlığı1 oz
-
Sona ermekCNC/V-CUT
-
Place of OriginShenzhen,China
-
Marka adıONESEINE
-
SertifikaISO9001,ISO14001
-
Model NumberONE-102
-
Minimum Order Quantity1pcs
-
FiyatUSD0.1-1000
-
Packaging DetailsVacuun bag
-
Delivery Time5-8 working days
-
Payment TermsT/T, Western Union
-
Supply Ability1000000000pcs/mon

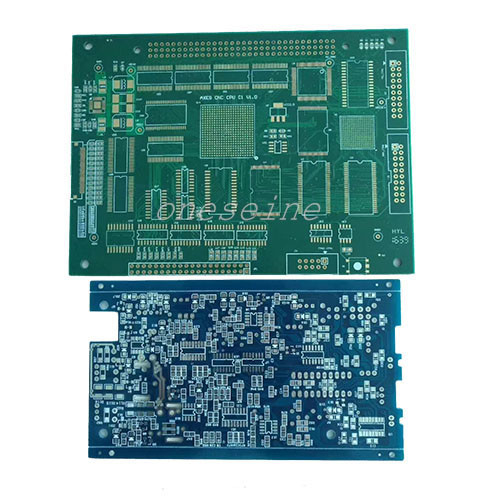

Single Layer FR4 PCB Board 1.6mm Thickness Blue HASL Finish
Green Glass Single Layer PCB Board Circuit FR4 Epoxy Metal Core 1.6mm OEM
Product Specifications
| Attribute | Value |
|---|---|
| Layer Count | Single Layer |
| Color | Blue |
| Rated Current | 15A |
| Lead Time | 5-7 working days |
| Surface Finishing | HASL |
| Thickness | 1.6mm |
| Standard | IPC Standard |
| Board Size | 90mm x 30mm |
| Copper Weight | 1oz |
| Finish | CNC/V-CUT |
Green Glass Epoxy Material Single Sided FR4 PCB Circuit Board
PCB Quick Details
- Layer: 1
- Surface finish: HASL lead free
- Copper weight: 1OZ
- Thickness: 1.6mm
Single Sided PCB Board Definition
A single-sided PCB features components concentrated on one side and wiring on the opposite side. This design is ideal for basic circuits as it offers a cost-effective solution with straightforward manufacturing requirements.
Key Features
- Available in metal core aluminum PCB, FR4 PCB, and flexible PCB options
- Excellent quality with competitive pricing
- Fast delivery: 24 hours for samples, 5-8 days for mass production
- Copper thickness options: 0.5-5OZ
- Board thickness range: 0.2mm-3.8mm
- Multiple solder mask color options: green, red, black, blue, yellow, etc.
Applications
Single-sided PCBs are widely used in various industries including:
- Medical devices (pacemakers, X-ray equipment)
- Industrial machinery (motor controllers, battery chargers)
- LED lighting solutions
- Automotive and aerospace components
- Consumer electronics (TV remotes, calculators, toys)
Technical Advantages
- Cost-effective manufacturing solution
- Simplified design process
- Easier maintenance and repairs
- Compact form factor for space-efficient designs
- Ideal for low to moderate complexity circuits
