4350 single sided copper pcb board
,Prototype single sided copper pcb board
,Halogen Free electronic prototype board
-
ürün_attributesPCB Devre Kartları, Rogers PCB, Rogers 4350 PCB, Halojen Free PCB
-
Ürün AçıklamasıHalojensiz PCB Materyal Halojen Ücretsiz PCB Laminat Halojen Ücretsiz PCB Mevzuatı
-
IPC StandarıIPC-A-600G
-
Katman1-12 katman
-
Bakır Thinknes1 oz
-
Yüzey teknolojisiHasl Kurşun Ücretsiz
-
Min Çizgi Genişliği4mil
-
SMT VerimliliğiBga.qfp.sop.qfn.plcc.chip
-
Silk ekranlı renkBeyaz, siyah, sarı
-
Montaj seçeneğiEvet
-
Min Hat Aralığı0.1mm / 4mil
-
Bakır kalınlığı1 oz
-
Place of OriginShenzhen,China
-
Marka adıONESEINE
-
SertifikaISO9001,ISO14001
-
Model NumberONE-102
-
Minimum Order Quantity1pcs
-
FiyatUSD0.1-1000
-
Packaging DetailsVacuun bag
-
Delivery Time5-8 working days
-
Payment TermsT/T,Western Union
-
Supply Ability1000000000pcs/mon

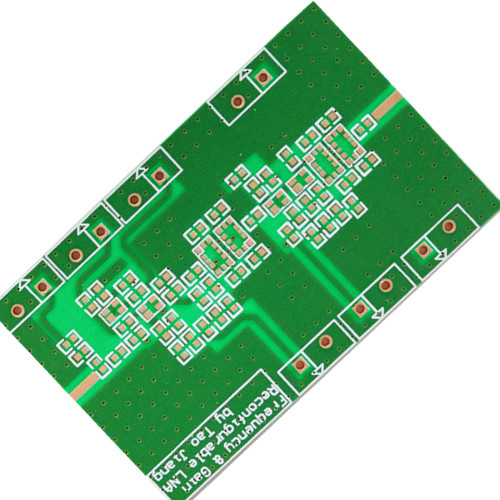

Rogers 4350 Halogen Free PCB Circuit Board Single Sided
Rogers 4350 Electronic Prototype Single Sided Copper PCB Board Halogen Free
Product Specifications
| Attribute | Value |
|---|---|
| IPC Standard | IPC-A-600G |
| Layer | 1-12 layers |
| Copper Thickness | 1 oz |
| Surface Technology | HASL lead free |
| Min Line Width | 4mil |
| SMT Efficiency | BGA, QFP, SOP, QFN, PLCC, CHIP |
| Silkscreen Color | White, Black, Yellow |
| Assembly Option | Yes |
| Min Line Spacing | 0.1mm / 4mil |
Basic Information
Material: Rogers 4350B 0.762mm
Layer: 2
Copper weight: 1OZ
Thickness: 0.8mm
Surface finish: Immersion gold
Board size: 17*22CM
Process side: Yes
Layer: 2
Copper weight: 1OZ
Thickness: 0.8mm
Surface finish: Immersion gold
Board size: 17*22CM
Process side: Yes
Halogen Free PCB Concept
With increasing global environmental awareness, halogen-free requirements for circuit boards have become essential. IEC61249-2-21 defines halogen-free manufacturing as containing less than 900 ppm of halogens (chlorine, bromine) and less than 1500 ppm total halogen content.
Common Halogen Elements in PCBs
- Chlorine: Used in electronic components, can produce poisonous gas when ignited
- Fluorine: Highly reactive, used in refrigerants and aerosol sprays
- Iodine: Added to halogen lamps to extend filament life
- Bromine: Used for flame-proofing and pesticides
- Astatines: Highly unstable and radioactive with no practical uses
Halogen Free PCB Benefits
Our halogen free PCBs offer enhanced safety, higher application temperature tolerance, and superior environmental compliance for fire damage prevention.
Alternative High-Frequency PCB Materials
Several high-performance materials are available for high-frequency applications:
- Isola: IS410, IS620, Astra MT
- Taconic: RF-35, RF-35A, TLX
- Arlon: 85N, 85HP, 55NT
- Nelco: N4000-13EP, N7000-2
- Panasonic/Megtron: Megtron 6, Megtron 7
Rogers PCB Applications
Ideal for 5G technology and high-frequency applications requiring low electrical noise and minimal signal loss:
- Automotive Radar and Sensors
- Microwave equipment
- Cellular Base Station Antennas
- RF Identification (RFID) Tags
- 5G Stations
- Microwave point to point (P2P) links
- LNB's for Direct Broadcast Satellites
