OSP Single Sided Circuit Board
,RO4003C Single Sided Circuit Board
,RO4003C pcb control board
-
Substrat kalınlığı0.762mm
-
Substrat malzemesiRO4003C
-
Katman sayısı2
-
Yüzey kaplamasıHasl, Enig, OSP, daldırma gümüşü
-
Dielektrik sabiti3.48
-
Katman1 ~ 20 Katman
-
MalzemeRogers
-
Min Çizgi Genişliği6mil
-
Bakır Thinknes1 oz
-
Min Hat Aralığı0.075mm
-
Elektronik kaynağıEvet
-
Tahta kalınlığı1.6mm-3.2mm
-
PeygamberKırmızı, yeşil, mavi, siyah vb.
-
Place of OriginShenzhen,China
-
Marka adıONESEINE
-
SertifikaISO9001,ISO14001
-
Model NumberONE-102
-
Minimum Order Quantity1pcs
-
FiyatUSD0.1-1000
-
Packaging DetailsVacuun bag
-
Delivery Time5-8 working days
-
Payment TermsT/T,Western Union
-
Supply Ability1000000000pcs/mon

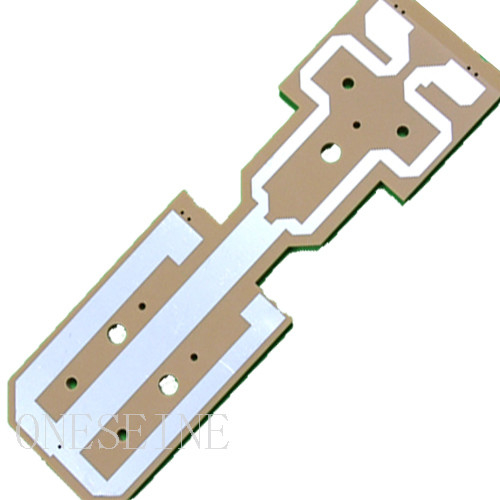

Rogers RO4003C 2-Layer PCB 0.762mm Thickness Immersion Silver
OSP RO4003C Single Sided Circuit Board PCB Control Board Immersion Silver
Product Specifications
| Attribute | Value |
|---|---|
| Substrate Thickness | 0.762mm |
| Substrate Material | Ro4003C |
| Layer Count | 2 |
| Surface Finish | HASL, ENIG, OSP, Immersion Silver |
| Dielectric Constant | 3.48 |
| Layer | 1~20 Layers |
| Material | Rogers |
| Min Line Width | 6mil |
| Copper Thickness | 1 oz |
| Min Line Spacing | 0.075mm |
| Electronics Source | yes |
| Board Thickness | 1.6mm-3.2mm |
| Soldermask | Red, green, blue, black etc |
Rogers RO4003C Dielectric Constant Mid Loss PCB Material
Quick Details
- Material: Rogers 4003C
- Board size: 9*3CM
- Surface finish: Gold plated
- Copper weight: 1OZ
- Number of layer: 2
- Solder mask: No
Rogers RO4003C HIGH FREQUENCY PCB 2 Layer 0.762mm Thickness printed circuit boards
Rogers 4003C PCB Material in Stock
- Rogers4003C: thickness(0.254 0.508,0.813,1.524) DK 3.38
- Rogers4350B: thickness(0.254 0.508,0.762,1.524) DK 3.5
- Rogers5880: thickness(0.254 0.508,0.762) DK 2.2
- Rogers3003: thickness(0.127, 0.508,0.762,1.524) DK 3
- Rogers3010: thickness(0.635) DK 10.2
- Rogers3206: thickness(0.635) DK 10.2
- Rogers3035: thickness(0.508) DK 3.5
- Rogers6010: thickness(0.635,1.27) DK 10.2
Rogers 4003C Laminate Characteristics
Volume production of microwave circuit assemblies requires fast, reliable and efficient methods of attaching discrete microwave components to the circuit board. These could include simple two-lead devices such as resistors or diodes, or complex multi-lead MICs.
RO4000® High Frequency Laminate Characteristics RO4350B™ and RO4003C™ high frequency laminates are glass reinforced hydrocarbon/ceramic materials. The laminate is a rigid, highly filled thermoset resin system which has a Tg >280°C (536°F). The high Tg helps to maintain the expansion characteristics over a wide range of temperatures.
High Frequency Rogers RO4003C Laminates
Typical Applications:
- High reliability aerospace and defense
- A wide range of typical and non-traditional microwave/RF applications
Standard Dielectric Constant
3.38±0.05
Standard Thickness
- RO4003C: 0.008" (0.203mm), 0.012 (0.305mm), 0.016"(0.406mm), 0.020" (0.508mm) 0.032" (0.813mm), 0.060" (1.524mm)
Rogers 4003C Datasheet
| Part Number | Composition | Dk | Df | Volume Resistivity Mohn/cm | Surface Resistivity Mohm | Density gm/cm3 | Thermal Coefficient of -50°C to 150°C ppm/°C |
|---|---|---|---|---|---|---|---|
| RO3003 | PTFE Ceramic | 3.00 | 0.0013 | 107 | 107 | 2.1 | 13 |
| RO3006 | PTFE Ceramic | 6.15 | 0.0020 | 103 | 103 | 2.6 | -160 |
| RO3010 | PTFE Ceramic | 10.2 | 0.0023 | 103 | 103 | 3.0 | -280 |
| R03035 | PTFE Ceramic | 3.5 | 0.0017 | 107 | 107 | 2.1 | -34 to -11 |
| RO3203 | PTFE Ceramic Reinforced Woven Glass | 3.02 | 0.0016 | 107 | 107 | 2.1 | 13 |
| RO3206 | PTFE Ceramic Reinforced Woven Glass | 6.15 | 0.0027 | 107 | 107 | 2.7 | -212 |
| RO3210 | PTFE Ceramic Reinforced Woven Glass | 10.2 | 0.0027 | 104 | 104 | 3.0 | -459 |
| RO4003C | Hydrocarbon Ceramic | 3.38 | 0.0027 | 1.7 x 1010 | 4.2 x 109 | 1.8 | +40 |
Popular Materials for High-Frequency PCBs
In addition to Rogers PCB materials, several other materials are used for high-frequency PCBs:
- Isola: IS410, IS620, Astra MT materials with excellent electrical properties
- Taconic: RF-35, RF-35A, TLX materials with low dielectric loss
- Arlon: 85N, 85HP, 55NT materials with high thermal conductivity
- Nelco: N4000-13EP, N7000-2 materials for high-speed digital applications
- Panasonic/Megtron: Megtron 6 and Megtron 7 for high-frequency applications
