Rogers 4003C 1 layer pcb
,batch production 1 layer pcb
,batch production circuit prototyping
-
Lehim maskesiBeyaz
-
MalzemeRogers
-
Bakır kalınlığı0.5oz-6oz
-
Sayı katmanı2 Kat
-
Bakır kalın1 oz
-
Hat genişliği5mil
-
Yüzey direnci≤0.05Ω
-
Min Hat Aralığı5mil
-
Place of OriginShenzhen,China
-
Marka adıONESEINE
-
SertifikaISO9001,ISO14001
-
Model NumberONE-102
-
Minimum Order Quantity1pcs
-
FiyatUSD0.1-1000
-
Packaging DetailsVacuun bag
-
Delivery Time5-8 working days
-
Payment TermsT/T,Western Union
-
Supply Ability1000000000pcs/mon
Rogers 4003C Single Sided PCB 0.5oz-6oz Copper Thickness
Rogers 4003C 1 Layer PCB Circuit Prototyping Batch Production 0.5oz-6oz
Product Specifications
| Attribute | Value |
|---|---|
| Solder Mask | White |
| Material | Rogers |
| Copper Thickness | 0.5oz-6oz |
| Layer Of Number | 2 layer |
| Copper Thick | 1 OZ |
| Line Width | 5mil |
| Surface Resistance | ≤0.05Ω |
| Min Line Spacing | 5mil |

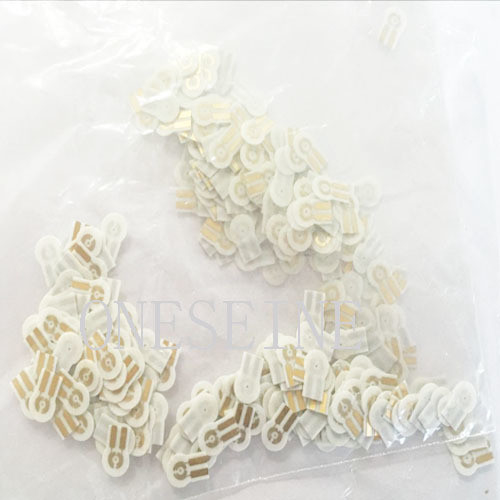

Rogers 4003C 0.2mm Small PCB Board
Basic Information
- Board size: 0.7*0.5cm
- Thickness: 0.203mm
- Material: Rogers 4003C
- Surface finish: Immersion gold
- Copper weight: 0.5OZ
- Type: Single sided small printed circuit board
Small PCB Production Process
Our standard raw material sizes are 18*12inch, 18*24inch, and 36*48inch. For optimal material utilization, we combine multiple small PCBs into panels for production, then precisely cut them using CNC machines. Small and irregularly shaped PCBs require more precise outline processing.
Small PCBs typically have slightly higher costs due to increased material requirements. For example, a 50-piece order may require producing at least 100 pieces to meet strict profile specifications.
As technology advances and devices shrink, the demand for compact circuit boards grows. Each PCB is custom-designed for specific applications and spatial constraints. Our engineers have specialized in small PCB manufacturing for over 7 years, offering competitive pricing and multiple production options with design-for-manufacturability expertise.
Applications
- Power Electronics
- Communications
- Industrial Control
- Medical electronics
- Security Electronics
- Consumer Electronics
- Computer, Aerospace
- Automotive electronics
Delivery Time
- Sample: Approximately 5 working days
- Production: Approximately 7-10 working days
- Small PCBs typically require 1 additional day compared to standard sizes
Frequently Asked Questions
What services do you provide?
We are an OEM PCB and PCBA manufacturer since 2002, offering turnkey solutions including R&D, PCB fabrication, SMT assembly, functional testing, and other value-added services.
What files are needed for quotation?
For PCB: Gerber files in RS-274X, ODB++, DXF, PCB, or PCB DOC formats.
For PCBA: In addition to PCB files, we require BOM list, Pick and Place file (txt format), and sample photos or 3D PDF files.
For PCBA: In addition to PCB files, we require BOM list, Pick and Place file (txt format), and sample photos or 3D PDF files.
How do you protect design confidentiality?
We are willing to sign NDAs enforceable by customer-side local laws and maintain strict confidentiality of all customer data.
How long does quotation take?
PCB quotes typically completed within 2 hours. PCBA quotes take 6-36 hours depending on complexity. Providing these details speeds evaluation: Material, Board thickness, Copper thickness, Surface finish, Solder mask color, Silkscreen color.
What are your delivery times?
Samples: ~5 days
Small batches: ~7 days
Mass production: ~10 days
Contact us directly for urgent orders.
Small batches: ~7 days
Mass production: ~10 days
Contact us directly for urgent orders.
How do you ensure quality?
For PCBs: We perform Flying Probe Tests and E-tests.
For PCBA: We conduct microscope and X-ray inspections of solder joints, plus functional testing with customer-provided methods or fixtures.
For PCBA: We conduct microscope and X-ray inspections of solder joints, plus functional testing with customer-provided methods or fixtures.
